Heavy Duty Horizontal Three Chucks Tube Laser Cutting Machine H3
There are few machines on the market that can compete with the H3 Heavy Duty Horizontal Three Chucks Tube Laser Cutting Machine when it comes to speed, precision, and durability. This machine is designed for heavy duty cutting applications and can handle even the most challenging projects. With its three chucks, this machine can cut tubes up to 12″ in diameter with ease. The laser cutting head is also able to produce clean, precise cuts on both round and square tubing.
Technical Parameters
| Maximum cutting length | ≤6000mm |
| Maximum weight for each tube | 250kg |
| Cutting diameter | 15-160mm O.D. |
| Rotary speed | 100rpm |
| X.Y.Z axis position accuracy | ±0.05mm/m |
| Minimum tailing | 0mm |
| Maximum running speed | 75m/min |
| Power supply | 380V/50Hz |
Components
Feature
· Machine bed
The rectangular tube is welded as a whole, which makes the machine process more smooth and has higher cutting accuracy.
· Chucks
Gear-driven chuck with higher load capacity, easy operation and high reliability
· Excellent dynamic performance and high torque accuracy High motor overload capability High torque inertia ratio Low noise and vibration-free operation

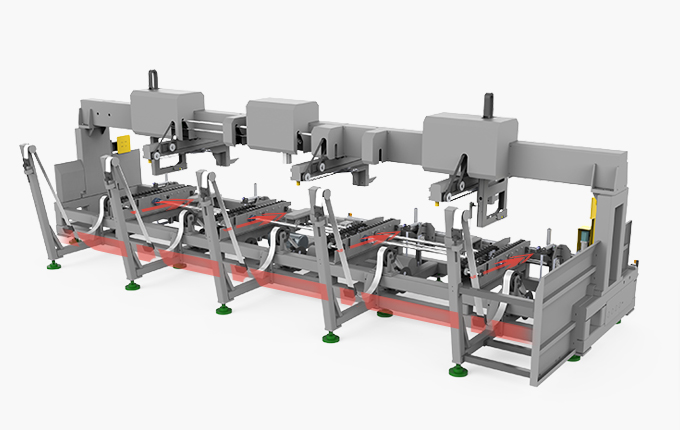

· Automatic loading device Load: 2T Loading range: 20-200diameter, Loading length: 4000-6000mm Single tube weight: max. 100kg
cutting effect
Photos of successful installation
frequently asked question
Do you have CE? We provide you with CE in the form of a one-stop service. At first, we will demonstrate CE to you. After delivery, we will give you CE packaging list a commercial invoice for customs clearance.
Please tell us about your following answer, our specialist will provide advice on proper power. 1. What material you want to cut, stainless steel, carbon steel or other? 2. What thickness do you want to cut?
If confronted with any problems, please contact us immediately and do not attempt to fix the machine by yourself or anyone else. We will respond within 24 hours as quickly as we can to help you.
2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Yes, we are happy to provide advice and we have dedicated technicians all around the world who are ready to assist you. Your operations’ continued success relies on your machines staying in working order.
