S120
Start off on the right foot
Round, square,
rectangular tubes
3D
70 kg
(15 to 120 mm)
The best of technology in the smallest member of the family

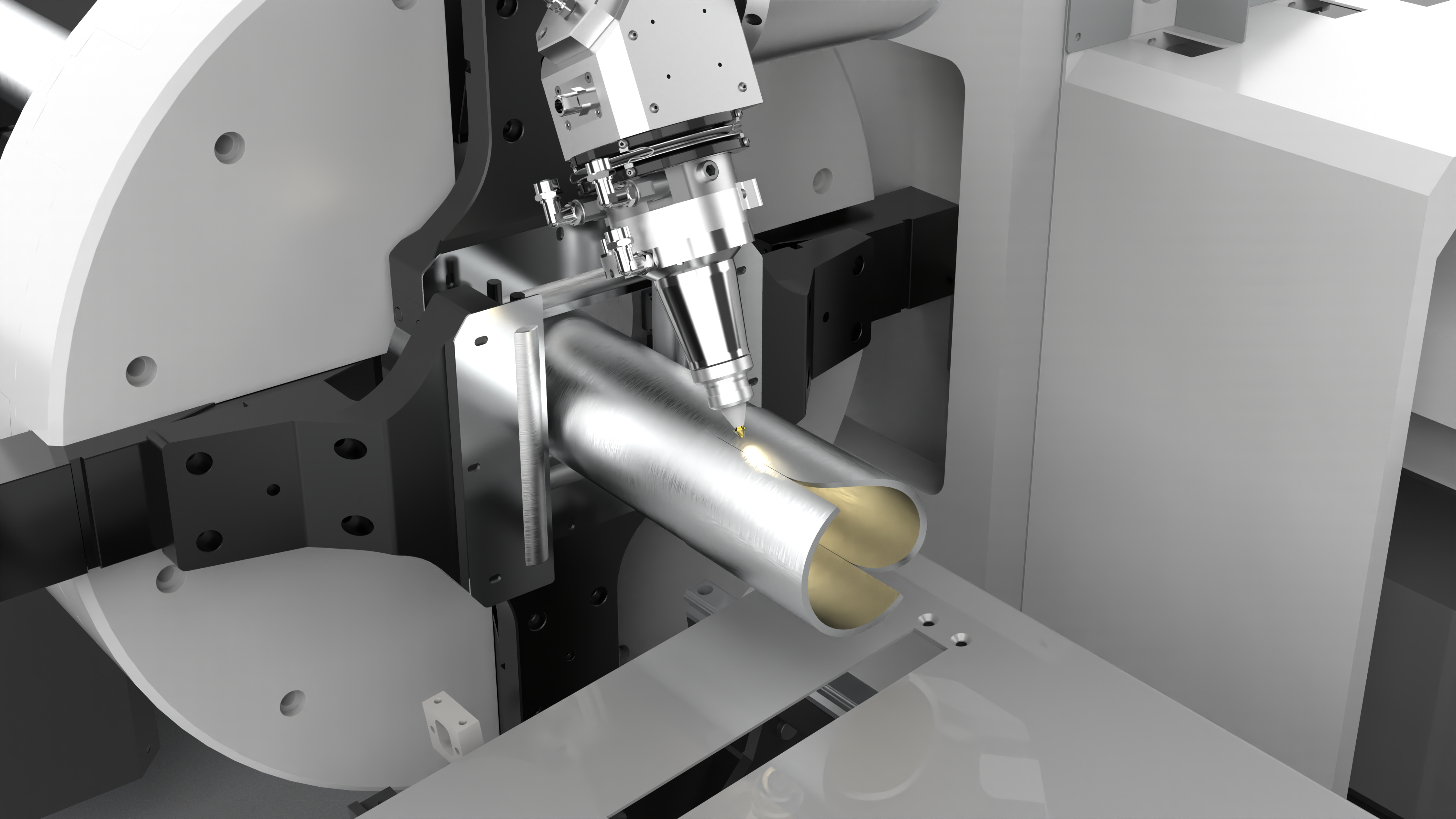

By utilizing the latest TubeCutter cutting head on the S120, you can generate top-notch components. Thanks to its automatic focus and integrated laser parameter management, there’s no requirement for any manual adjustments.
Performance based on robustness and, above all, reliability.
Ergonomic and accessible
The central element of the fiber optic tube cutting machine is its primary component. It is responsible for executing the cutting function and ensuring precise cutting accuracy. This main machine part comprises the bed, front chuck, rear chuck, cross beam, x-axis device, z-axis device, laser head, follow-up support, auxiliary system (including lubrication, air path, and water path), electric control cabinet, operation screen, and operation panel, among other components.
Form and content in a single solution
The best choices show their value over time
There are 3 sets of roller support mechanisms installed on the bed. The auxiliary support is mainly for cutting longer pipes (pipes with smaller diameters).
For auxiliary control of excessive deformation, the cylinder controls the up and down movement of the support on the auxiliary support. When the rear chuck moves to the corresponding
At the position, the auxiliary support can be lowered to avoid it. For pipes of different sizes, please use the corresponding support radius to adapt to the pipe.
the height of.
Machine performance will remain robust, reliable and productive year after year.
The software suite that creates value
Design of parts and frames in a three-dimensional graphical CAD/CAM environment designed to exploit every performance margin of the Lasertubes.
Libraries of functions that speed up and simplify design on the tube.
Accurate batch time and cost estimates for a detailed estimate.
Remote planning and real-time monitoring of work in progress.
All this and more makes a difference every day in terms of being able to make full use of a laser cutting system, reducing unproductive downtime times and eliminating waste.
A choice of value also involves software.
